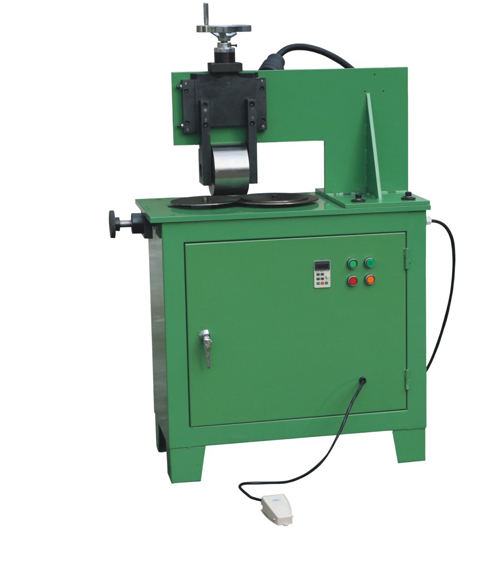

Eyelets Wrapping Machine

used to eyelet the reinforced gasket inner and outer diameter with SS strip


Send Inquiry


Description

This machine is used to eyelet the reinforced gasket inner and outer diameter with SS strip. Need to use with KXT E1530 SS strip moulding machine.
Working range: Diameter 60mm to 4000mm. Width: 95mm, Thickness: 2-8mm


Specification as following:
STYLE KXT E1540 Eyelet machine
Eyelet Gasket thickness 2-8mm (Standard machine package include one set model for 3mm, other size need extra order
Eyelet Gasket width 95mm
Maximum gasket OD 4000mm
Minimum gasket ID 60mm
Total power 0.75kw
Spindle motor power 0.4kw
Power supply voltage 380V/220V as request, 3phases
Frequency Converter 0.75G
linear speed 0---120mm/s
Machine measurement 950*450*1300mm
Machine net weight 220 kg
